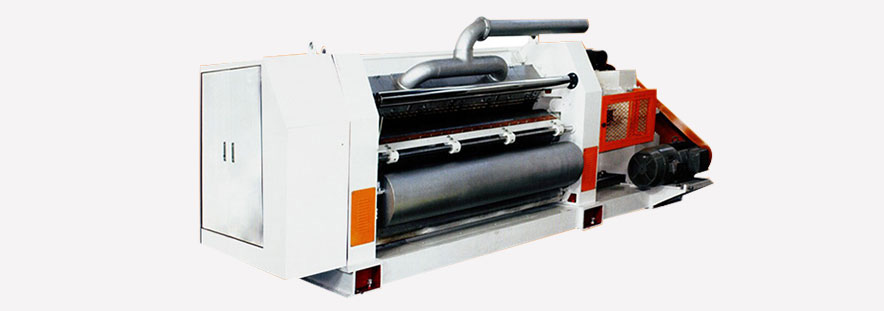

1. Non-paste V-shaped single corrugating machine.
2. LZ-20P: outer diameter of corrugating wheel is φ320mm, design speed: 200m/min (1.6m-2.0m).
3. LZ-25P: outer diameter of corrugating wheel is φ360mm, design speed: 250m/min (1.8m-2.5m).
4. Upper corrugating wheel, pressure wheel and paste wheel rising can be controlled via air pressure, and it is available to configure oil pressure control selectively.
5. Upper and lower corrugating wheels are made of nickel, chromium and molybdenum alloy steel, through heat treatment, hardness is SHORE70 degree above, and the surface is grinded and processed by tungsten carbide.
6. Sweden-imported bearing and high temperature grease are taken to the upper and lower corrugating wheels, pressure wheel and paste scraping wheel of paste wheel to ensure the service life and bearing and smooth operation.
7. The machine is equipped with facial tissue pre-heating wheel and core paper tempering sparger.
8. The gap between lower corrugating wheel and pressure wheel, lower corrugating wheel and paste wheel, paste wheel and tangent paste wheel is micro-adjusted electrically, and attached with numerical display.
9. It is attached with electric paste-separating device and rotation device of paste wheel.
10. Modular wheel replacing structure and corrugating wheel can be replaced in the complete set.
11. PLC automatic mixing to effectively control the amount of paste more.
