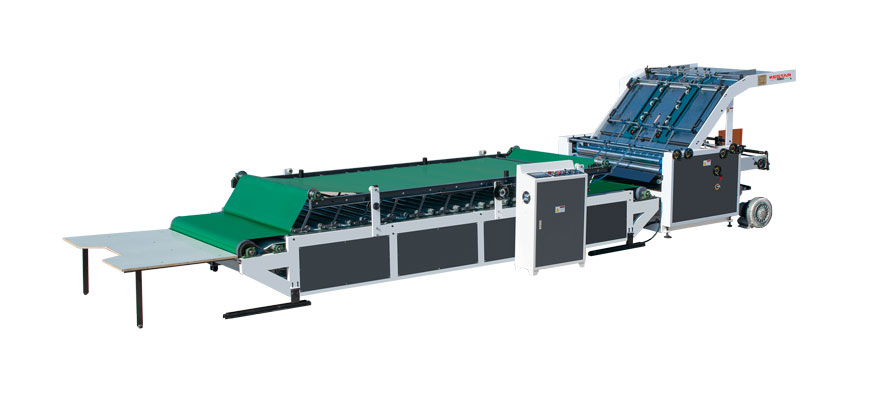

Semi-automatic Flute Laminator
Main Features
FMSeries Semiautomatic Flute Laminator is mainly used in color printed card board to corrugated board lamination.
Main Specification
|
Model |
FM-1100 |
|
Max. paper size |
1100×1100mm |
|
Min. paper size |
360×360mm |
|
Lamindin precision |
2—5mm adjustable（Front lay precision ±1.5mm） |
|
Speed |
0-100m/min |
|
Total Power |
5.3kw |
|
Weight |
3.0T |
|
Overall dimension |
8500×1600×1700mm |
|
Model |
FM-1300 |
|
Max. paper size |
1300×1100mm |
|
Min.paper size |
360×360mm |
|
Lamindin precision |
2—5mm （Front lay precision ±1.5mm） |
|
Speed |
0-100m/min |
|
Total Power |
5.3kw |
|
Weight |
3.3T |
|
Overall dimension |
8500×1800×1700mm |
|
Model |
FM-1450
|
|
Max. paper size |
1450×1200mm |
|
Min.paper size |
360×360mm |
|
Lamindin precision |
2—5mm （Front lay precision ±1.5mm） |
|
Speed |
0-100m/min |
|
Total Power |
6kw |
|
Weight |
4.0T |
|
Overall dimension |
9500×2000×2000mm |
