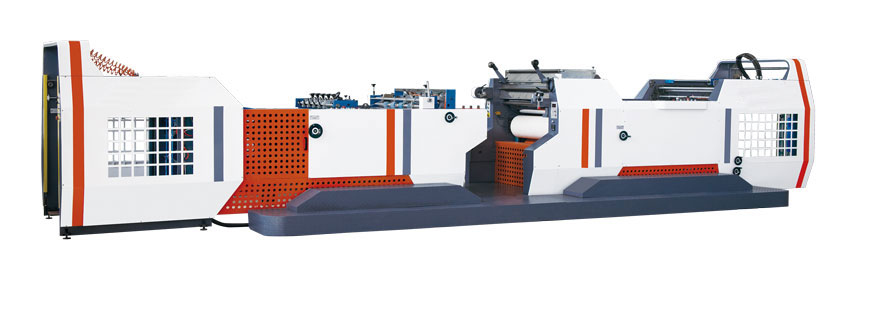

YFM Series Automatic High-speed Thermal Film Laminator
Main Features
YFM Series film laminator is a dual purpose machine designed for thermal film and non-glue film. This machine uses Feida automatic paper feeding mechanism to send paper to the matching host.Then the film is laminated with the sheet by pressing roller through heating and pressing. The pressing roller adopts circulating water heating system with quick heating and stable and accurate temperature control. The finished product can be delivered with roll or be cut a notch by the rotary disk knife and separated by rollers. The delivery can be either manually or automatically.
Main Specification
Model |
YFM-1100X1200 |
Max. paper size |
1100X1200mm |
Min.paper size |
400X310mm |
Laminating speed |
10-105m/min |
Appropriate paper |
105-500g/m² |
Total Power |
34kw |
Weight |
≈ 6.2T |
Overall dimension |
11500x2000x1850mm |
Model |
YFM-1100X1450 |
Max. paper size |
1100X1450mm |
Min.paper size |
400X310mm |
Laminating speed |
10-105m/min |
Appropriate paper |
105-500g/m² |
Total Power |
36kw |
Weight |
≈ 7.2T |
Overall dimension |
12500x2000x1850mm |
Model |
YFM-1300X1650 |
Max. paper size |
1300X1650mm |
Min.paper size |
450X450mm |
Laminating speed |
10-110m/min |
Appropriate paper |
157-500g/m² |
Total Power |
38kw |
Weight |
≈ 7.5T |
Overall dimension |
12500x3000x1850mm |
