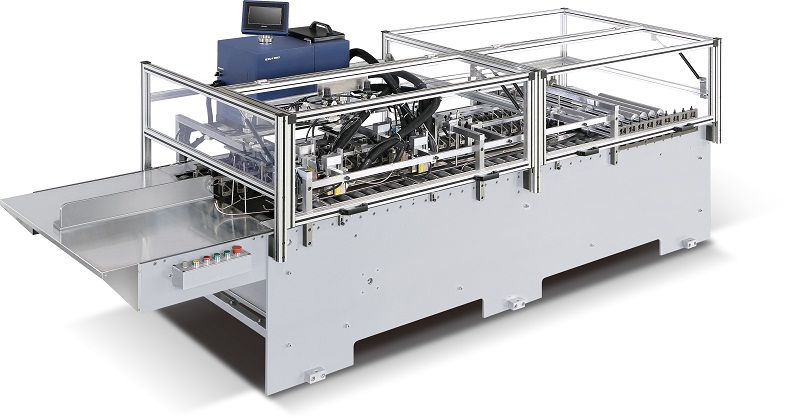

LZ-50B Semi Automatic Paper Bag Bottom Gluing Machine

Introduction
LZ-50B Semi automatic paper bag bottom gluing machine is composed of bags without bottom glue(manually insert cardboard at the bag bottom or without), manual feed the bags, folding the bag bottom and gluing the bottom.This machine is equipped with roll on water soluble glue(with optional hot melt glue), guarantees the evenness of gluing and controls the glue amount on the paper bottom according to the bag size, to achieve high precision for the bottom gluing and high speed. It lowers the cost and improves the paper bag quality, can do with different sizes of paper bags.The machine is suitable for Kraft paper bags, white cardboard bags, art paper bags and laminated paper bags.

Technical Parameters:

Paper Bag Width	180-420mm
Paper Bag Bottom/Gusset	60-180mm
Paper Sheet Length	290-600mm
Paper Types/Paper Weight	120-450gsm
Working Speed	120pieces/min.
Glue Type	Water Glue(Optional hot melt glue system )
Total Power	3.5KW
Machine Weight	1500KGS
Machine Dimension(L*W*H)	4800*1220*1320mm
