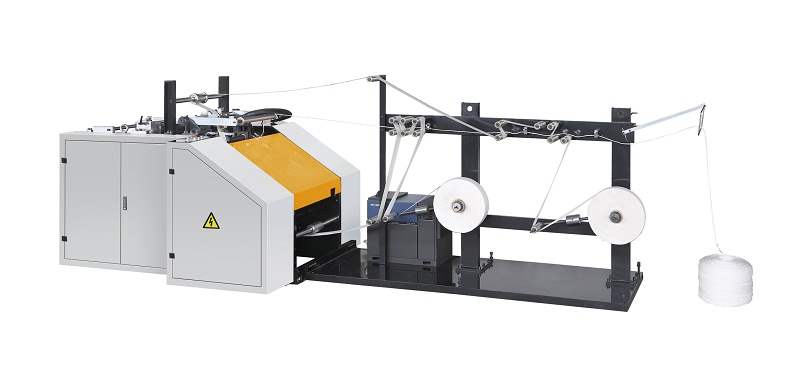

LZ-188 High Speed Paper Bag Handle Making Machine
The product is mainly applicable for the production of the paper bag handle for the square bottom bag .With the application of variable frequency control system.the product has the features of low noise,high speed and high productivity and user friendly.With attractive appearance,the high-speed paper bag handle machine has adapted the air-tight shield,which has largely improved the operation safety of the machine.

Technical Parameters:

N O.	Configuration	Model
1	Wrist rope length	330-380mm/12.99-14.96inch
2	Wrist strap width	94.2mm/3.71inch
3	Paper width	35-40mm/1.38-1.97inch
4	Paper length	188.4mm/7.42inch
5	The paper roll diameter	600-1000m/23.62-39.37inch
6	Width of the paper roll	70-80mm/2.75-3.15inch
7	Paper basis weight	100-128g
8	The rope diameter	4-5mm
9	Power demand	6kw
10	Product speed	8000-10000pcs/h
11	The weight of the whole machine	3.8T
12	Machine size	4880*1580*1600mm
