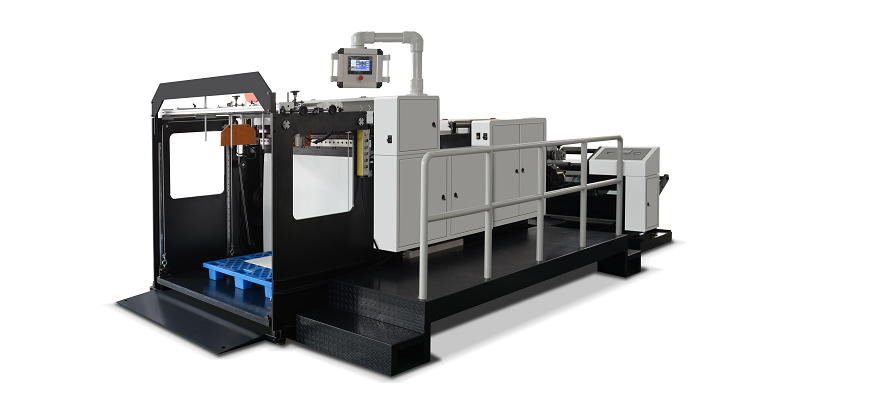

As technics of our machine, we hereby describe the related functions and work flow for paper products: unwinding→ conveying → slitting → cutting → collecting.

Paper Width	:	Max width 1600 mm
Cutting numbers	:	3pcs cutting knife
Paper roll’s diameter	:	Max.Ф1600mm
Paper core’s diameter	:	3”(76.2mm) or 6”(152.4mm) or according to the clients’ demand
Mother roll weight	:	Max. 1200kg (shaftless)
Mother roll number	:	1 roll
Paper weight	:	20-500g/m2
Finished Sheet Specification (Length)	:	20-1200mm
Production speed	:	Max 0-150cuts/min (depends on different paper length)
Cutting accuracy	:	±0.2mm
Main power supply	:	3*380V /50HZ
Machine dimension	:	5800*3200*2000mm
Machine weight	:	5000kg
Voltage	:	380V AC /24V DC
Power	:	10KW
Air consumption	:	200NL/min
Air pressure	:	6-8 bar
Edge cutting	:	5~10mm*2
Safety standard	:	Design according the safety standard of China
