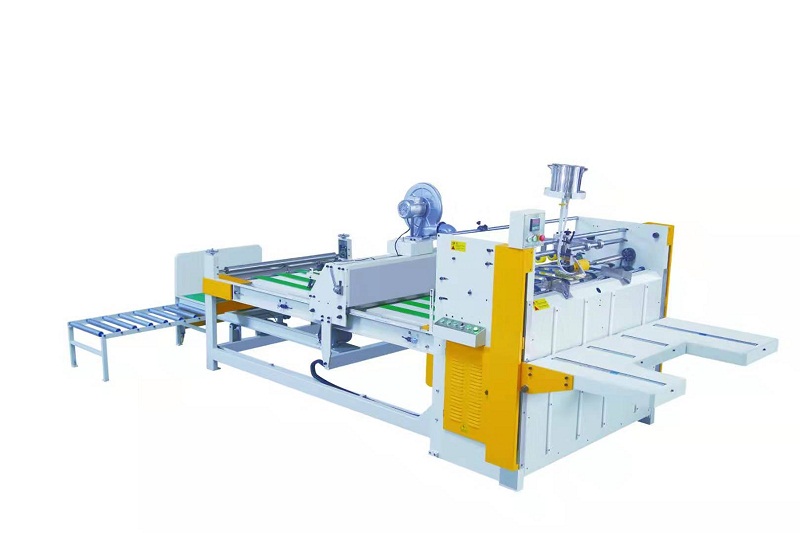

This machine is a carton forming at the end of the process equipment, applicable to three layer, five layer ranging from the size of the corrugated cardboard with (such as bonded seven layer can be customized processing), the machine has high production efficiency, production of cardboard, founder and artistic, the consumption of the advantage is less adhesive, cost is lower than the set box tape 10 times as much, and the firm adhesion, convenient operation, saving people and electricity, smooth operation is the ideal equipment for high-grade export carton processing.

Model	LZ-2600
Max. size (length + width) (mm)	2600
Min. size (length + width) (mm)	340
Max. size (width and height) (mm)	1515
Min. size (width and height) (mm)	250
Feeding height (mm)	900
Motor power (kw)	2.3
Machine weight (kg)	2000
Mechine speed (sheet/min)	40
Dimensions (mm) LxWxH	5500×1800×2000
