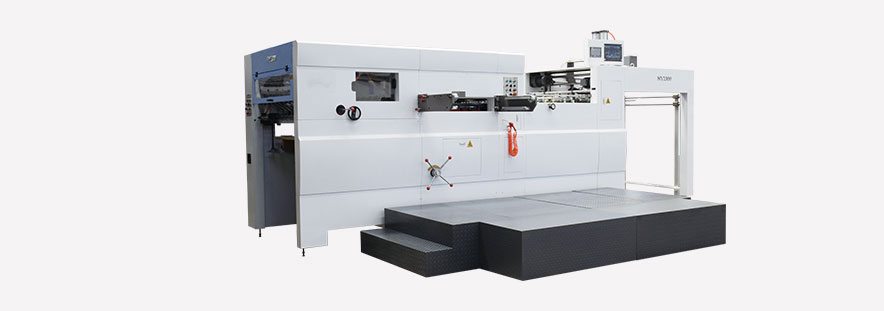

The design of this machine can meet requirements of ordinary type die-cutting machine, but reduce more labor intensity of the operator, and enhance the production efficiency and machining accuracy. Machine uses dancing roller feeding structure which makes the operation more easy. The conveying and belt pressing part can takes bent sheet at a wider range. The second positioning mechanism ensures higher die-cutting precision.

Model	LZ-1300
Max. Paper Size	1300×970mm
Min. Paper Size	550×550mm
Max. Cutting Size	1320×960mm
Net Weight	18T
Total Power	21kw
Cutting Speed	6000 sheets/hour
Sheet Thickness	1-7mm cartons
Die-cutting Pressure	350T
Die-cutting Precision	±0.5mm
Dimensions	9500×4000×2500mm

Model	LZ-1500
Max. Paper Size	1510×1120mm
Min. Paper Size	550×550mm
Max. Cutting Size	1500×1100mm
Net Weight	22T
Total Power	21kw
Cutting Speed	4500 sheets/hour
Sheet Thickness	1-7mm cartons
Die-cutting Pressure	350T
Die-cutting Precision	±0.5mm
Dimensions	10500×5000×2600mm
