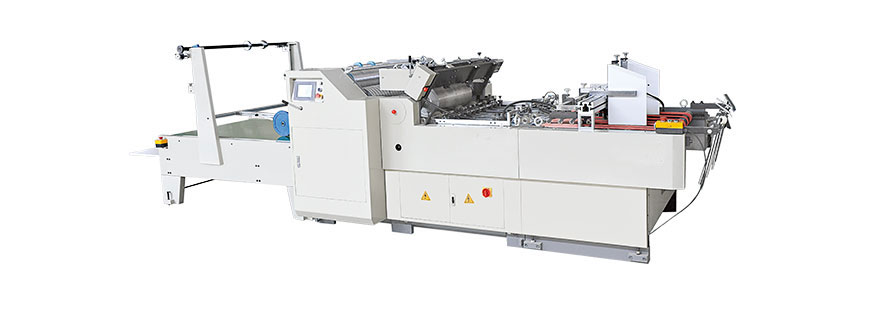

LZ-1020/1200/1450 Window Pating Machine
Main Features
1. Film Servo Model: Suitable for the universal window ,easy operation for the film.
Intermittent Length Slitting: Suitable patching for the universal window, and also patching for the napkin box incision.
2. Paper Patching Perforated Model: Suitable patching for the universal window, and also finish the paper pasting strengthen and perforating of the milk case.
3. Double Patching Model: Patching for the universal window, double patching for the kraft paper of the milk case and then diecutting. (The max. paper size is 1080×730mm )
4. Double Line Model: Suitable for the universal patching ,and also double line paper patching to improve the working efficiency.
5. Small Paper High Speed Model: Suitable for the high speed paper patching for the small paper ,the speed improve two times than the common model.(12000s/h)
6. Small Paper for Double Line High Speed Model: Suitable for the double patching for the small paper ,double patching ,the speed improve four times than the common model .
Main Specification
|
Model |
LZ-1020 |
|
Max. Paper Size |
1080×630mm |
|
Min. Paper Size |
140×140mm |
|
Max. Film Size |
410×300mm |
|
Min. Film Size |
80×60mm |
|
Film Thickness |
0.05-0.20mm |
|
Max. working speed |
8000s/h |
|
Carboard |
200-500g/m² |
|
Corrugated Paper |
≤7mm |
|
Total Power |
9Kw |
|
Total Weight |
3000kg |
|
Overall Dimensions |
5000×1960×1750mm |
|
(When the roller pull out the dimensions) |
5000×3160×1750mm |
|
Model |
LZTC-1200 |
|
Max. Paper Size |
1200×720mm |
|
Min. Paper Size |
140×140mm |
|
Max. Film Size |
410×300mm |
|
Min. Film Size |
80×60mm |
|
Film Thickness |
0.05-0.20mm |
|
Max. working speed |
6000s/h |
|
Carboard |
200-500g/m² |
|
Corrugated Paper |
≤7mm |
|
Total Power |
10Kw |
|
Total Weight |
3500kg |
|
Overall Dimensions |
6200×2000×1750mm |
|
(When the roller pull out the dimensions) |
6200×3260×1750mm |
|
Model |
LZ-1450 |
|
Max. Paper Size |
1400×900mm |
|
Min. Paper Size |
140×140mm |
|
Max. Film Size |
410×300mm |
|
Min. Film Size |
100×100mm |
|
Film Thickness |
0.10-0.25mm |
|
Max. working speed |
5000s/h |
|
Carboard |
400-500g/m² |
|
Corrugated Paper |
≤7mm |
|
Total Power |
14Kw |
|
Total Weight |
4500kg |
|
Overall Dimensions |
7500×2200×1750mm |
|
(When the roller pull out the dimensions) |
7500×3400×1750mm |
