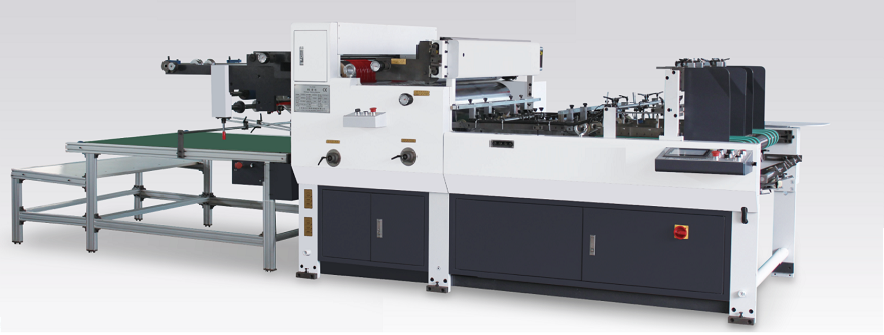

We are specializes in the production and manufacture of window patching machines for more than ten years, with rich experience in design, manufacturing, after-sales management, the product has unique insights into mass production and manufacturing, equipment throughout the world, product speed, quality, safety, high cost performance.

Model	LZ-800A	LZ-1100A
Max. Paper size	760×650mm	1100×650mm
Min. Paper size	100×100mm	100×100mm
Max. Film size	460×380mm	850×500mm
Min. Film size	40×20mm	40×20mm
Film thickness	0.03-0.3mm	0.03-0.3mm
Max. Working speed	13000s/h	12000s/h
Cardboard	200-1200g/m2	250-1200g/m2
Corrugated paper	≤5mm	≤5mm
Total power	8Kw	9Kw
Total weight	2700kg	2980kg
Overall Dimensions	4800×1405×1520mm	4998×1800×1520mm
Overall Dimensions (When the roller is pulled out)	4800 ×2100×1520mm	4800 ×2650×1520mm
