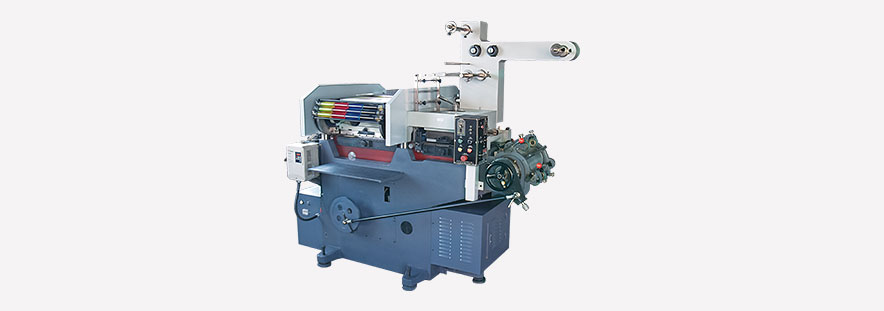

Automatic flat bed design label printing machine adopts high standard cast steel, it is shaped at one time in processing, with higher precision and better strength. This machine has the characteristics of excellent performance, convenient maintenance, and long service life and so on.

Item	LZ-320
Printing Size(mm)	310×170 (3 colors) 310×125 (4 colors) 310×95 (5 colors)
Printing Plate Size	310×540 (mm)
Die Cutting Size	310×300 (mm)
Max. Paper Size	320 (mm)
Max. Paper Backward	200 (mm)
Printing Speed	50-150 (r/min)
Main motor	5.5 (kw)
Suction Motor	0.6 (kw)
Weight（kg)	4800 (Net Weight) 5300 (Gross Weight)
Overall Size(L×W×H)	2860×1600×1700 (mm)
