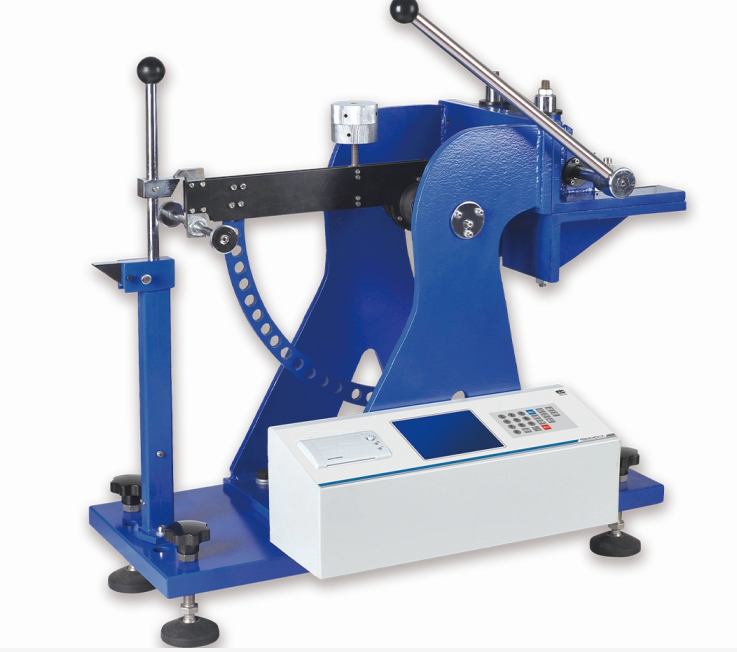

LZ104B Intelligent Cardboard Puncture Tester
Product Features
The instrument has a snap-operating handle, operation handle automatic reset and reliable safety protection, it has high test accuracy, reliable performance, modern design concept, compact structure, beautiful appearance and easy maintenance.
Technical standards

Items	Parameters
Measurement range(J)	0-48 in four files
Value accuracy (Guaranteed only in the file measurement limit of the range of 20%-80%)	Gears	Range(J)	Value Error(J)
	A	0-6	±0.05
	B	0-12	±0.10
	C	0-24	±0.20
	D	0-48	±0.50
Friction resistance set(J)	≤0.25
Pyramid feature size	Three base length 60mm*60mm,high(25±0.7)mm
Dimension(L*W*H)mm	800*470*840
Net weight	145kg
Work environment	Temperature 5-35℃,relative humidity less than 85%
