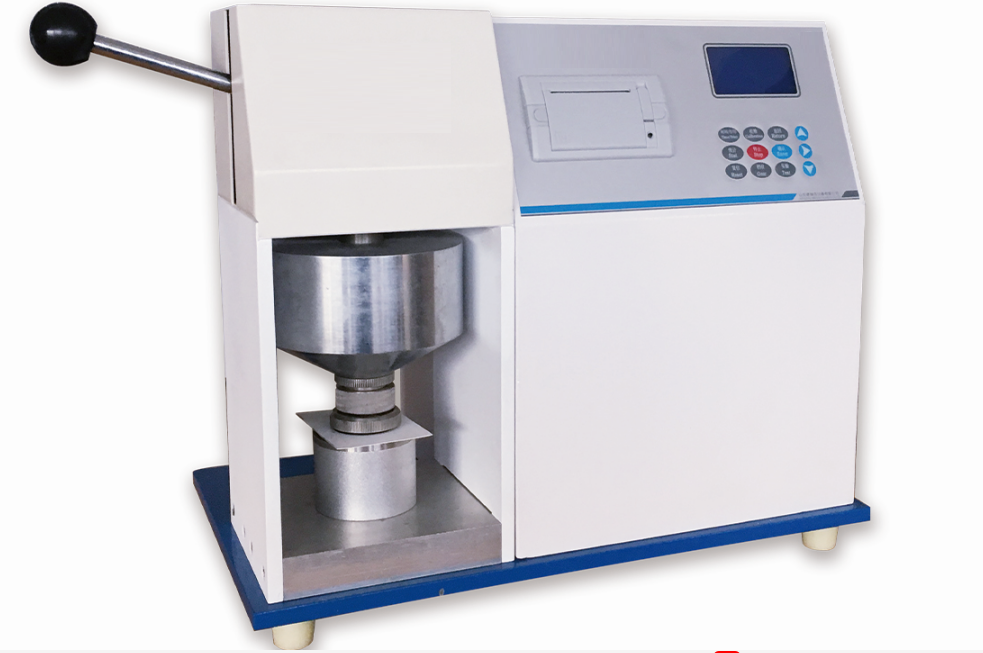

LZ105 Smoothness Tester
LZ105 Smoothness Tester
Product Features
1. Oil- free vacuum pump: Imported vacuum pump, no need to refuel the vacuum pump can work, using this instrument oil-free and pollution-free.
2. Pre-pressing time selection: The instrument has the function of "60 seconds automatic pre-pressing control". Users can choose whether to use this function or not according to their needs.
3. Quick measurement: Small volume cavity can be chosen to measure, and the measuring time is only one tenth of that of largevolume cavity, which saves the measuring time greatly and realizes fast measurement.
4. Excellent sealing property: Using foreign vacuum sealant and advanced sealing technology, the sealing property of the instrument meets the requirements of national standards.
5. The modular integrated printer is easy to install and has low malfunction. Thermal printer and needle printer are optional.
6. Chinese- English free switching, using large LCD module, display the operation steps, measurement and statistical results,friendly user machine interface makes the operation of the instrument simple and convenient, reflecting the humanized design idea.
Technical standards
Items Parameters
Power supply AC220V±5% 50HZ
Accuracy 0.1 seconds
Measuring range 0-9999 seconds,divided into(1-15)s,(15-300)s,(300-9999)s
Test area 10±0.05cm2
Volume of vacuum vessel system Large vacuum vessel(380±1)ml,small vacuum vessel(38±1)ml
Pressure 100kpa±2kpa
Display Chinese and English dot matrix menu
Working environmental Temperature 5-35℃,relative humidity no more than 85%
Dimensions 318mm*362mm*518mm
Weight 47kg
