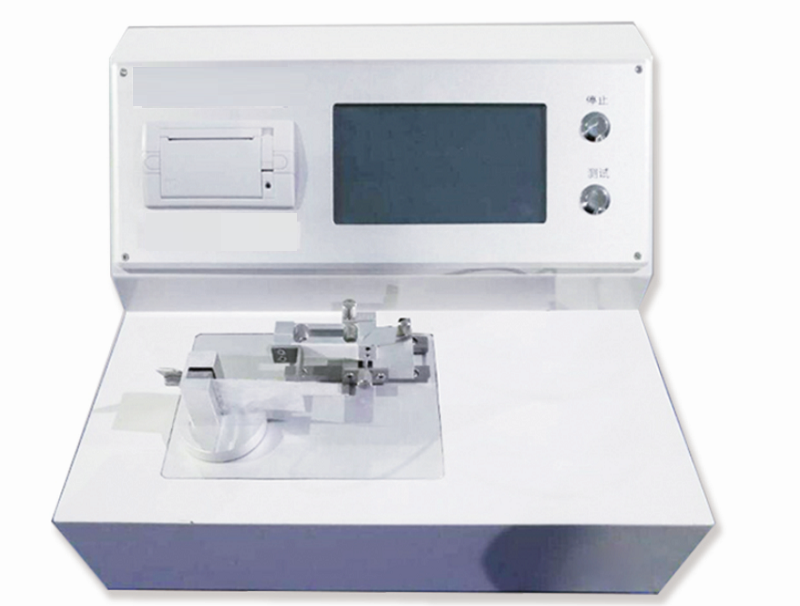

LZ106W Horizontal Stiffness Tester
Product Applications
This instrument is usually used for the stiffness test of paper and cardboard which 20 mN - 10000mN (The reduced bending moment is 2 mN.mlOOOmN.m), it also suitable for some materials with high stiffness.
Technical standards

Items	Parameters
Test range	Bending force(15-300)mN,resolution force 0.1mN
Bending length	(50±0.1)mm,(25±0.1)mm,(10±0.1)mm
Bending angle	15°±0.3°,7.5°±0.3°
Bending rate	200°±20°/min(adjustable)
Indicative accuracy	±0.6mN when the indication error<50mN,other±1%,the indication variability≤1%
Power supply	AC220V±5%,50Hz
