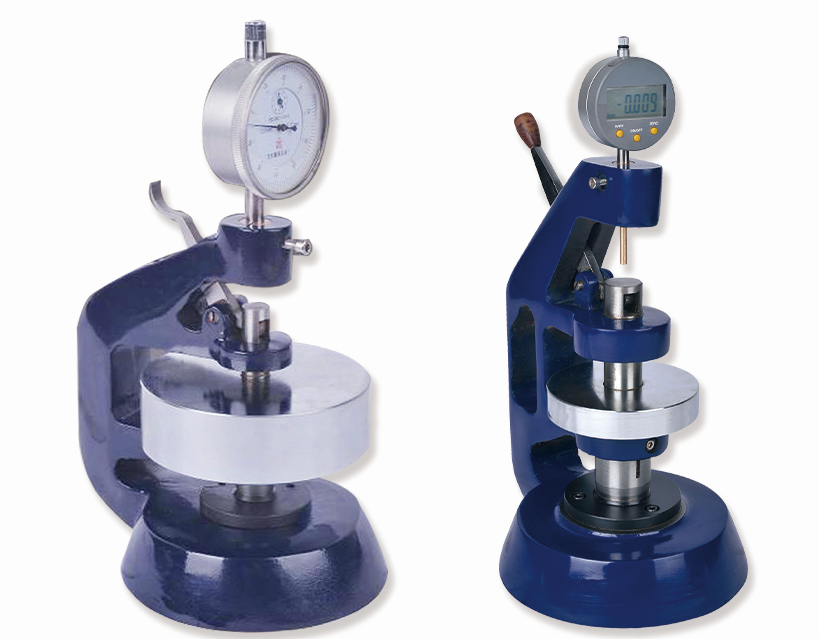

LZ107 Thickness Tester
Product Features
l. Manual type, digital display/pointer type, percentile meter/micro meter is optional for the measuring head, compact and portable structure.
2. It is suitable for the thickness measurement of flat sheet samples, and also widely used for the thickness measurement of paper, cardboard, other sheet materials and corrugated cardboard.
Technical standards

Items	LZ107A	LZ107B
Measuring range	0-25mm	0-4mm
Contact area	2±0.05cm2	2±0.05cm2
Measuring pressure	100±10kpa	100±10kpa
Scale division value	0.01mm/0.001mm Optional	0.01mm/0.001mm Optional
Measuring repeatability	±2.5μm or ±0.5%	±2.5μm or ±0.5%
Size	240*160*120mm	240*160*120mm
Weight	4.5kg	4.5kg
