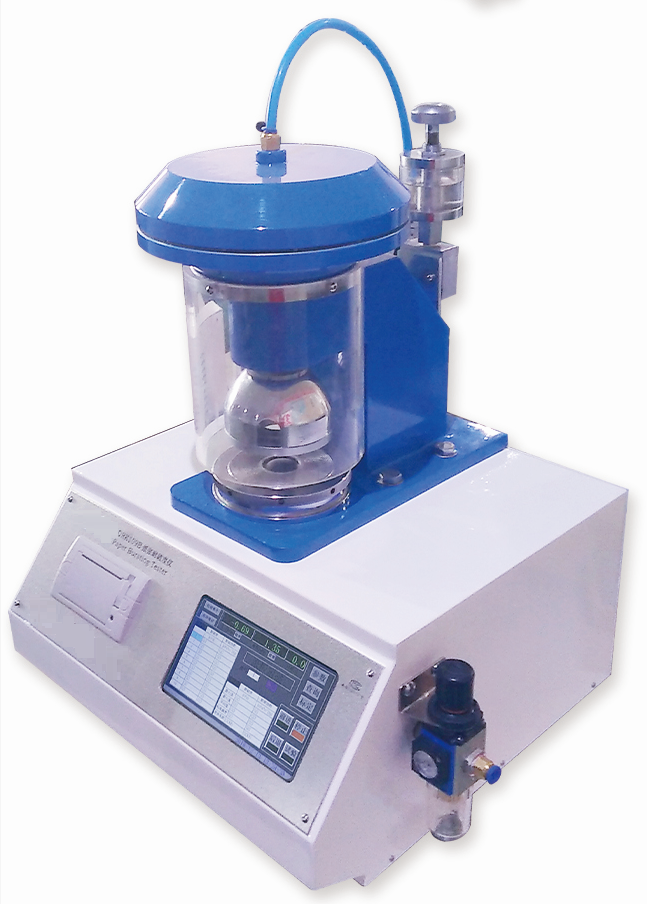

LZ109BQ Pneumatic Bursting Strengh Tester
LZ109BQ Pneumatic Bursting Strengh Tester
Product Features
l. Sample clamping automatically, saving time and effort, reducing human errors;
2. Microcomputer control technology, open structure, high degree of automation;
3. Large touch screen operation type and button operation type of the instrument are optional;
4. Drick independently develops software, which can automatically measure, compute, count and print test results. It has powerful data preservation function and pressure difference parameters (which can ensure the accuracy of the test);
5. High-speed micro printer, easy to use, low failure;
6. Modern design concept of mechatronics, hydraulic system (cylinder with copper and steel with four seals, to ensure 6000K pa without oil leakage), powerful, compact structure, beautiful appearance.
Technical standards
Items |
LZ109AQ for cardboard |
LZ109BQ for paper |
Measurement range |
250-6000kpa |
50-2000kpa |
Clamping force between upper and lower clamping plates |
>690kpa |
>430kpa |
Air supply connection |
Φ8mm polyurethane pipe |
Air supply pressure |
0.7MPa(Gas source user owned,optional) |
Speed of pressure-increasing and oil-adding |
170±15ml/min |
95±5ml/min |
Film resistance |
When height of protrusion reaches 10mm,170-220kpa;
When height of protrusion reaches 18mm,250-350kpa |
When height of protrusion reaches 10mm,20-40kpa;
|
Machines accuracy |
1 grade(resolution:0.1 kpa) |
Accuracy of indication |
±0.5%ES |
Sealing performance of hydraulic system |
When reach the upper limit,pressure decreasing in 1 minute<10%Pmax |
Dimension |
530*360*550(mm) |
Power |
220V±10%50Hz |
