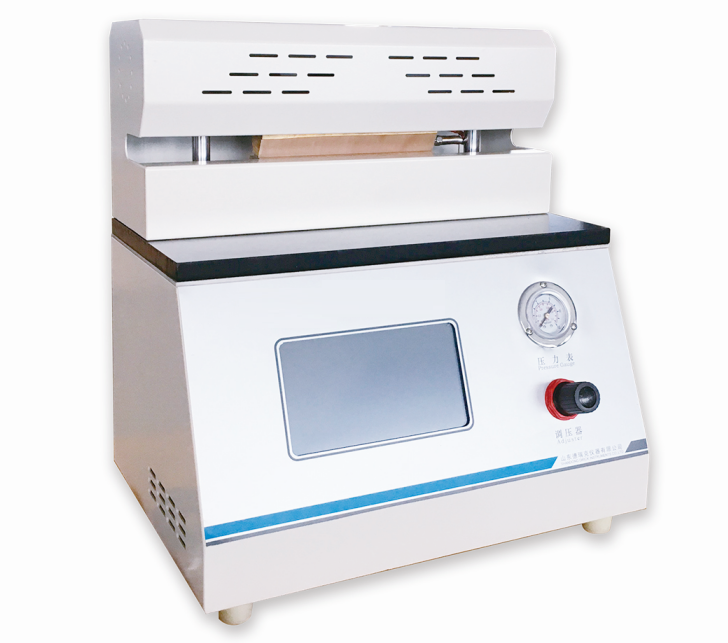

LZ133 Heat Seal Tester
Product Features
1. Microcomputer control, touch screen operation, menu interface;
2. Digital P.I.D. Temperature Control and Downward Double Cylinder Synchronization Circuit;
3. Manual and pedal start-up modes;
4. Independent temperature control of upper and lower heat heads, and customizable heat cover forms;
5. Aluminum Filling Homogeneous Heating Tube, Fast Drawing Plug- in Heating Tube Power Supply Connector;
6. Anti- scald safety design can effectively guarantee user's convenience and safety.
Technical standards

Items	Parameters
Seal temperature	Room temperature-300℃
Temperature control accuracy	±0.2℃
Dwell time	0.1-999.9s
Dwell pressure	0.05MPa-0.7MPa
Seal surface	180mm*10mm(Customization is available)
Heat type	Double heat surface
Gas source pressure	0.5MPa-0.7MPa(Users prepare gas source themselves)
Gas source inlet	Φ6mm polyurethane pipe
Dimensions	400mm(L)*280(W)mm*380(H)mm
Power	AC220V;50Hz
Net weight	40kg
