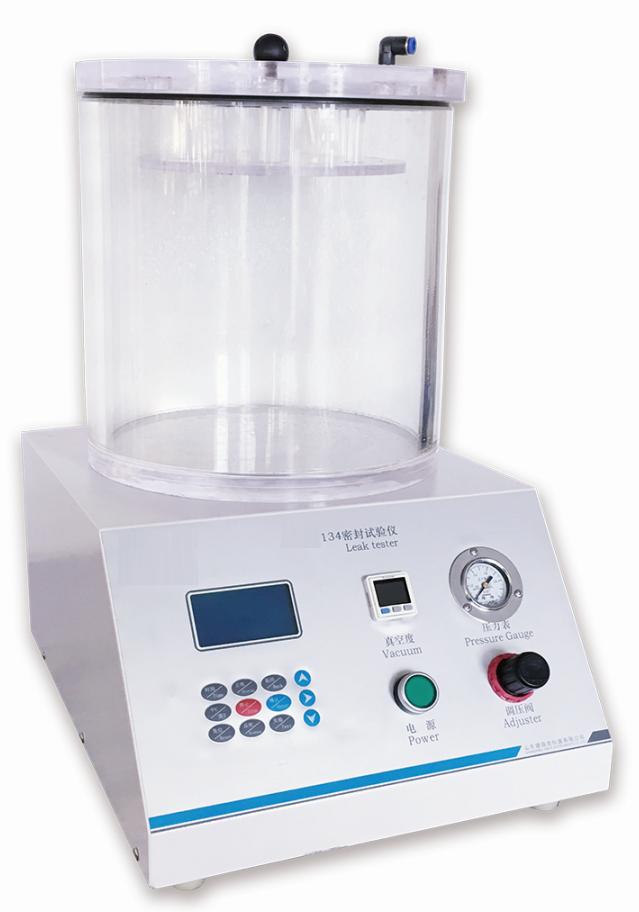

LZ134 Leak Tester
Product Features
Simple operation, unique and novel instrument design, easy to observe the experimental results, micro-computer control,liquid crystal display, PVC operation panel, digital preset test vacuum degree and vacuum holding time, imported pneumatic components, automatic constant pressure compensation, automatic end of the test, automatic reverse blow unloading.
Technical standards

Items	Parameters
Accuracy	Level 1
Vacuum degree	0-90Kpa
Effective size of vacuum chamber	Φ270mm*210mm(H)(Standard)
	Φ360mm*585mm(H)(Optional)
	Φ460mm*330mm(H)(Optional)
	Note:Other sizes can be customized
Gas source pressure	0.7MPa(Users prepare gas source themselves)
Air connection	Φ6mm polyurethane pipe
Shape size	300mm(L)*380(B)mm*450(H)mm
Power  supply	AC 220V±5%50Hz
Net weight	12kg
