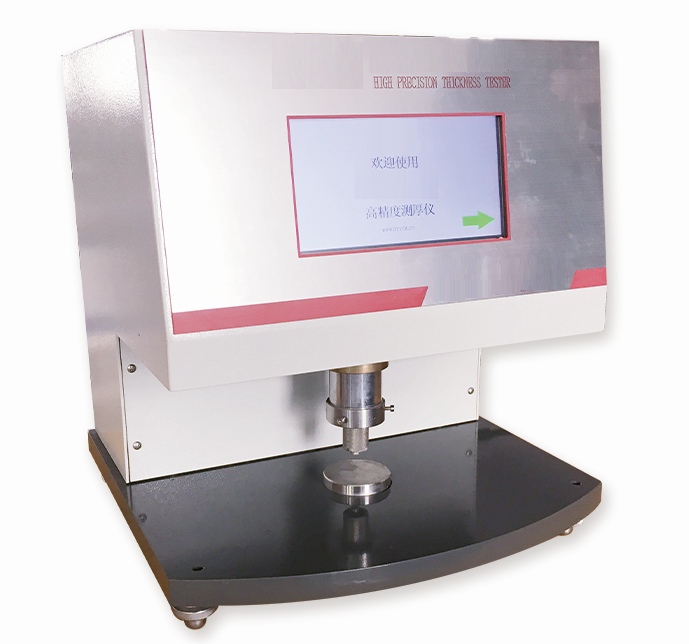

LZ203 High Precision Thickness Tester
Features
1. Touch screen operation, micro-computer control, user- friendly experimental operation and data viewing;
2. The automatic lifting and measuring mode of the probe effectively avoids the systematic error caused by human factors;
3. Contact measurement, standard contact area, calibration pressure, standard gauge block calibration measurement parameters.
Technical standards

Items	Parameters
Measurement range	0-3mm(Standard)
Resolution	0.1μm
Measuring speed	5 times/min(adjustable)
Probe moving speed	3mm/s
Probe moving speed	2kpa,20kpa,50kpa,100kpa
Contact area	28mm2(6mm diameter) non-standard customizable
