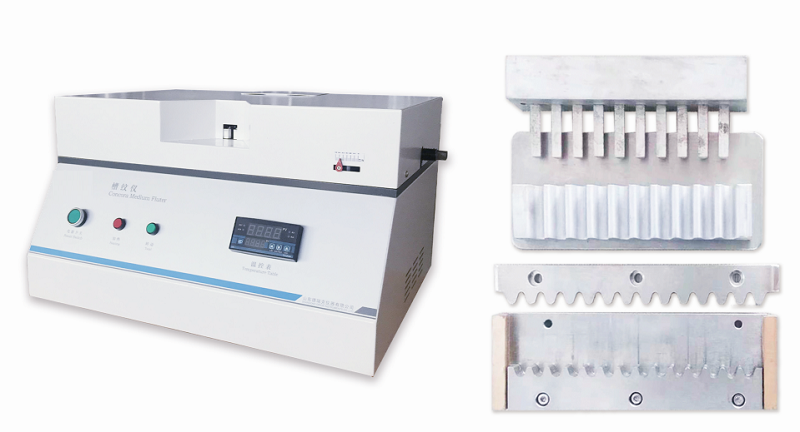

LZ113 Concora Medium Flute
LZ113 Concora Medium Flute
Product Features
l. High-precision temperature controller accurately adjusts temperature, PID control, automatic temperature compensation;
2. Fast response and high steady-state accuracy;
3. Digital display of actual temperature and set temperature, with over-temperature protection device, set parameters can be automatically remembered after power failure, with parameter self-tuning function;
4. The corrugated gears are made of finely processed copper with large heat capacity, good heat transfer and wear resistance.Standard button is sensitive and durable, automatic corrugated raw paper corrugation mode.
Technical standards
Items |
Parameters |
Working speed |
4.5r/min |
Temperature display resolution |
1℃ |
Accuracy of temperature measurement |
Level 0.5 |
Adjustable range of working temperature |
Room temperature to 200℃ |
Adjustable range of working pressure |
(49-108)N |
Standard operating temperature |
175℃ |
Spring tension |
100N |
