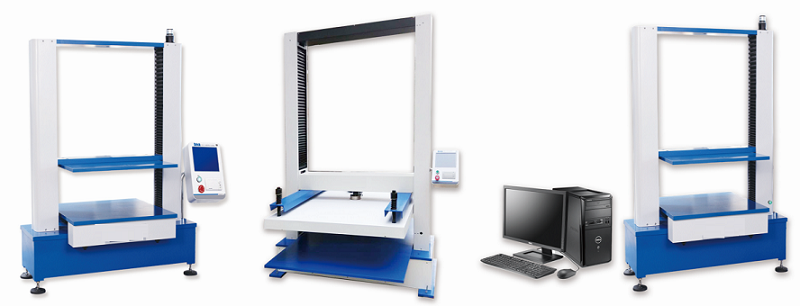

LZ123 Box Compression Tester
Product Features
1.Computer control, high automaticity, fast data collection,test automatically and intelligent judgment;
2.Three test methods: compression test; stacking test; press standard test;
3. Screen dynamic displays sample number, force-deformation and real-time pressure curve and initial pressure.
4.Open structure, double screw, double column, reduction gears drive reduction, good parallelism, good stability,strong rigidity, long service life;
5.Serve motor controls with high precise, low noise and high speed advantages; Accurate position and fast response speed save test time;
6.24 high-precision AD converter (resolution up to 1 1100000) and high precision weighing sensor to ensure the speed and accuracy of the data acquisition of the instrument force;
7.Ultimate travel protection, overload protection, bugs prompt and fault prompts intelligent configuration to ensure safe operation; Micro-printer can print test data easily.
Technical standards

Items	Parameters
Test range	10KN 20KN 50KN(Optional)
Accuracy	1 grade
Force value resolution	0.1N
Deformation resolution	0.01mm
Pressing plate	Parallelism between upper and lower pressing plate:≤1mm
Stroke	600mm/800mm/1000mm(Customizable)
