Creasing Matrix
Main Features

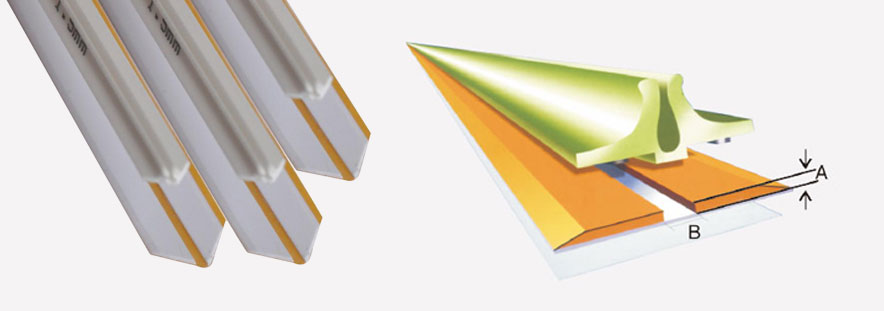

Creasing matrix structure instruction
A Protection gum paste
B Creasing matrix
C Creasing channel height
D Location plastic strip
Main Specification
|
Selection of cardboard in the control（by beer-cutting knife to do a height standard 23.77mm） |
|
Paper weight |
Thickness（mm） |
Indentation line height |
Indentation made common line
|
|
23.50 |
23.40 |
23.30 |
23.10 |
23.10 |
23.00 |
23.24 |
22.90 |
|
200 |
0.28 |
0.3*1.0 |
0.4*1.0 |
|
|
|
|
0.5*1.2 |
|
|
250 |
0.35 |
0.3*1.2 |
0.4*1.2 |
0.5*1.2 |
|
|
|
0.5*1.3 |
|
|
300 |
0.42 |
0.3*1.3 |
0.4*1.3 |
0.5*1.4 |
|
|
|
0.5*1.4 |
|
|
350 |
0.50 |
|
0.4*1.4 |
0.5*1.5 |
0.6*1.5 |
|
|
0.5*1.5 |
|
|
400 |
0.56 |
|
|
0.5*1.6 |
0.6*1.6 |
|
|
0.5*1.6 |
0.8*1.6 |
|
450 |
0.63 |
|
|
0.5*1.7 |
0.6*1.7 |
0.7*1.7 |
|
0.5*1.7 |
0.8*1.7 |
|
500 |
0.70 |
|
|
|
|
0.7*1.7 |
0.8*1.7 |
|
0.8*1.8 |
|
Selection of corrugated in the control（by beer-cutting knife to do a height standard 23.77mm） |
|
Corrugated |
After the compacted thickness |
Indentation line height |
Selection (1.05) |
Selection (1.42) |
|
F-Hang |
0.5mm |
23.20mm |
0.5*1.7 |
|
|
E-Hang |
0.65mm |
23.10mm |
0.7*2.3 |
|
|
E-Hang |
0.75mm |
23.00mm |
0.8*2.5 |
|
|
B-Hang |
0.85mm |
22.90mm |
0.8*2.7 |
0.8*3.2 |
|
B-Hang |
0.95mm |
22.80mm |
1.0*3.0 |
1.0*3.5 |
|
C-Hang |
1.05mm |
22.70mm |
1.0*3.2 |
1.0*3.5 |
|
C-Hang |
1.15mm |
22.60mm |
|
1.0*4.0 |
